ML13, 3-Head LED Recessed Multiple
Home / QLuxe Specification Grade / Recessed Multiples / Lumen Output / 3000 - 4000 lumens

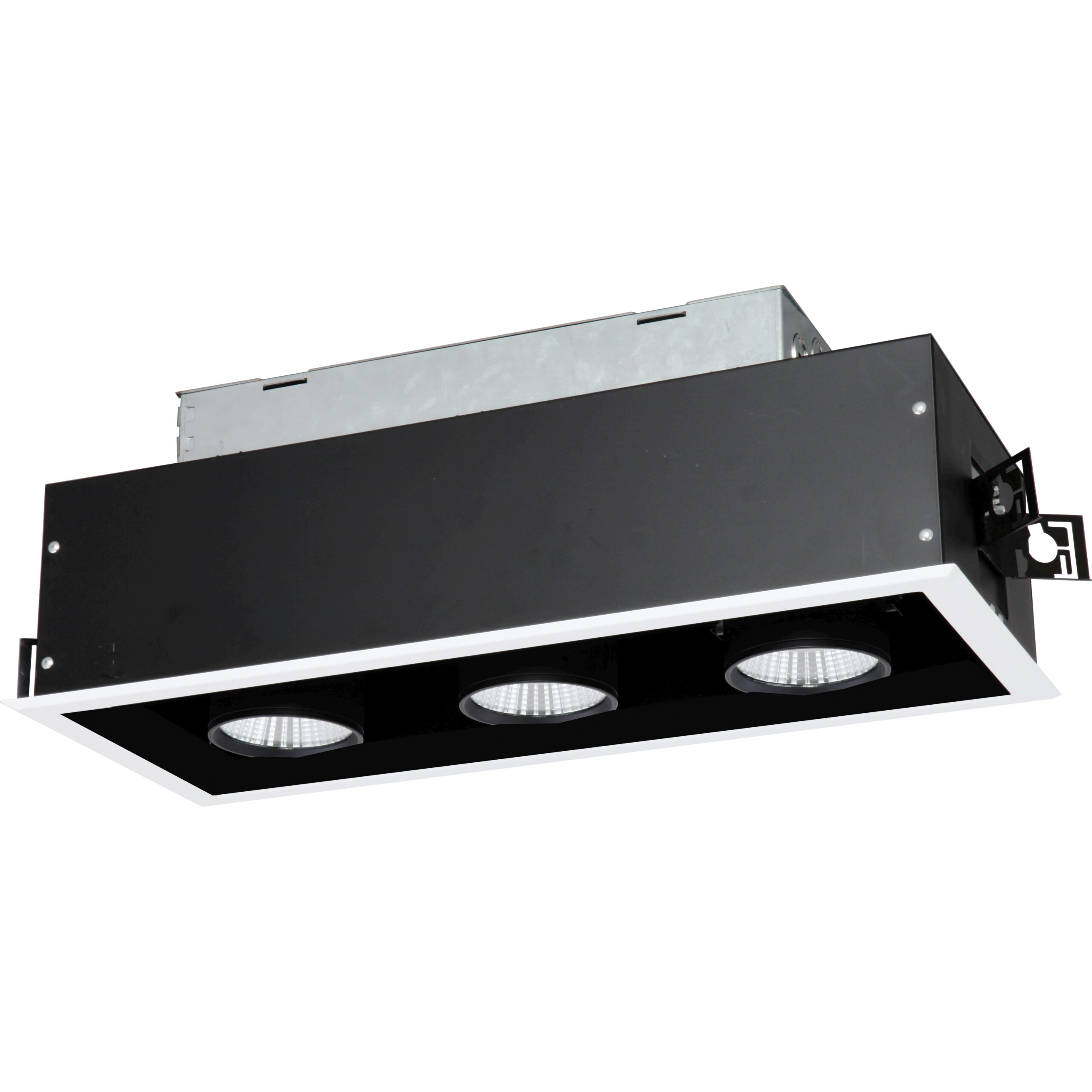

ML13, 3-Head LED Recessed Multiple

Specification Sheet Instruction Sheet

IES Files

ML11-30-13-15.IES

ML11-30-13-24.IES

ML11-30-13-38.IES

ML11-30-20-15.IES

ML11-30-20-24.IES

ML11-30-20-24.IES

ML11-30-20-38.IES

ML11-30-30-15.IES

ML11-30-30-24.IES

Description

Recessed three-head, architectural downlight. Fully adjustable LED heads can be flush or extended downwards for increased aiming angles and superior coverage. Ideal for down and accent lighting in indoor spaces where performance and design matter. Choose from 1300 lumens/25-watts, 2000 lumens/45-watts, or 3000 lumens/60-watts per head, and a CCT of 2700K, 3000K, 3500K, or 4000K. 91 CRI. 15°, 24°, or 38° optics. Various dimming options available (see specification sheet). Precision-formed all steel housing. Aperture is 7½” x 21⅞” and flanged with ¾” wide trim. Overall trim dimensions are 9⅝” x 23⅞”.
